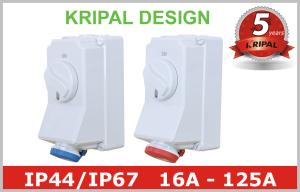

16A 32A 63A 125A Interlocked Switched Socket Outlet Industrial Power
KRIPAL has the UTILITY MODEL PATENT for the mechanical interlock device inside.
After insertion and switching on, the plug is interlocked in the ON-position. After switching off and withdrawing, the switch is locked in the OFF-position.
Description:
1. It is well known by people that products can inordinately affect with all kinds of liquids, either they were in operative mode or storage mode. It has varying effects on their raw materials and features and even can damage the structures when they are permeated, flowed, struck, and accumulated by liquids.
2. The aim of rain test is that it tests their operative stabilities and reliabilities which their outside shells prevent the penetration and are corroded at the time or later when equipments are corroded by all kinds of liquids.
Specifications:
| Product | Mechanical Interlocked Switch Socket |
| Rated Ampere | 16A, 32A, 63A, 125A |
| No. of poles | 2P+E, 3P+E, 3P+N+E |
| Voltage | 230V, 400V |
| Protection degree | IP44, IP67 |
| Power type | Single Phase, Three phase |
| Conductor cross-sectional area (mm2) | 1.5-4(16A); 2.5-10(32A), 6-25(63A) |
| Material | NYLON PA6, PC, copper |
| Color | RAL5017 (Blue); RAL3000 (Red); RAL7000 (Cyan); RAL9018 (White). |
Construction Structure:
Mechanical interlock device inside
Articulated cover prevent dust and water
Compact design, cable entry hole from side or bottom
Quality brass one-piece, high conductivity
Semko certified UKP series switchgear mounted in box
Full range of Industrial Plug Socket as follows:
| Protection | IP44/IP67 |
| Current | 16A, 32A, 63A, 125A, 250A, 420A |
| Pins | 2P+E, 3P+E, 3P+N+E |
| Voltage | 20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V |
| PLUG & SOCKET | Low voltage plug socket <50V |
| Industrial plug, industrial socket |
| Wall mounted socket, wall mounted plug |
| Panel mounted socket, panel mounted plug |
| Interlocked switched socket |
| BOX | Industrial portable socket box |
| Industrial plastic socket box |
| Power maintenance box (stainless) |
| Power maintenance box (plastic) |
| Industrial lighting box (plastic) |
| Industrial lighting box (metal) |
| Distribution box for exhibition box |
| T. V / Film power distribution box |
| Distribution box with power and compress air outlet |
| Accessories | Cap for 16A, 32A, 63A, 125A plug |
Special requirements?
We will help you find an individual solution for your switching needs.
Our project engineers are here to understand the special requirements of your project and assist to develop a solution as a partner.
Should your requirements not be covered by our extensive standard product range we have our own R&D and mould tooling center for special switches in order to flexibly, promptly and cost effectively meet your individual requirements.
Just let us know your ideas, and we will show you a great solution.
