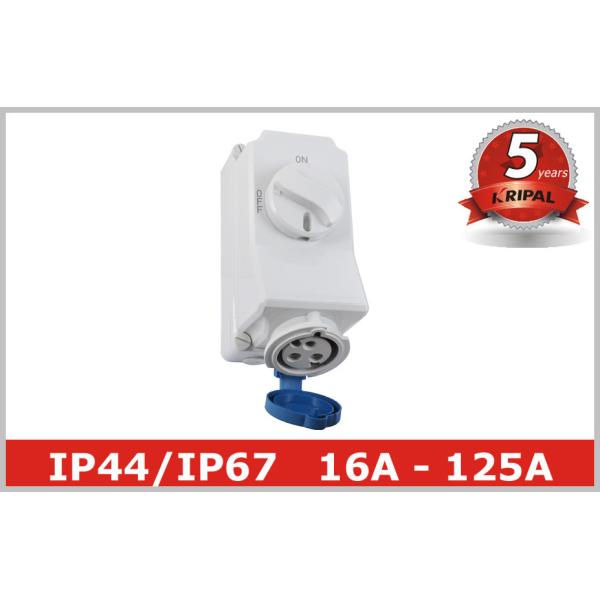

220V 380V Electrical Socket Outlets with Industrial Switch Interlock
KRIPAL has the UTILITY MODEL PATENT for the mechanical interlock device inside.
After insertion and switching on, the plug is interlocked in the ON-position. After switching off and withdrawing, the switch is locked in the OFF-position.
Description:
The series industrial power sockets manufactured by KRIPAL are made of plastic, halogen-free, with a great strength and are offered with various voltages, from 24 to 500V with 16A to 125A. The lids allow an opening angle of 180 degrees while the design confers strength and an aesthetic aspect, making the piece attractive. The body of this product, on the other hand, is delivered with an ergonomic design that improves handling, with the conduit entry being made through a cable gland, ensuring protection against water access to the internal parts.
Specifications:
| Product | Mechanical Interlocked Switch Socket |
| Rated Ampere | 16A, 32A, 63A, 125A |
| No. of poles | 2P+E, 3P+E, 3P+N+E |
| Voltage | 230V, 400V |
| Protection degree | IP44, IP67 |
| Power type | Single Phase, Three phase |
| Conductor cross-sectional area (mm2) | 1.5-4(16A); 2.5-10(32A), 6-25(63A) |
| Material | NYLON PA6, PC, copper |
| Color | RAL5017 (Blue); RAL3000 (Red); RAL7000 (Cyan); RAL9018 (White). |
Construction Structure:
Mechanical interlock device inside
Articulated cover prevent dust and water
Compact design, cable entry hole from side or bottom
Quality brass one-piece, high conductivity
Semko certified UKP series switchgear mounted in box
Full range of Industrial Plug Socket as follows:
| Protection | IP44/IP67 |
| Current | 16A, 32A, 63A, 125A, 250A, 420A |
| Pins | 2P+E, 3P+E, 3P+N+E |
| Voltage | 20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V |
| PLUG & SOCKET | Low voltage plug socket <50V |
| Industrial plug, industrial socket |
| Wall mounted socket, wall mounted plug |
| Panel mounted socket, panel mounted plug |
| Interlocked switched socket |
| BOX | Industrial portable socket box |
| Industrial plastic socket box |
| Power maintenance box (stainless) |
| Power maintenance box (plastic) |
| Industrial lighting box (plastic) |
| Industrial lighting box (metal) |
| Distribution box for exhibition box |
| T. V / Film power distribution box |
| Distribution box with power and compress air outlet |
| Accessories | Cap for 16A, 32A, 63A, 125A plug |
Our service:
1. Samples: provided freely
2. Package: packed in standard cartons, special packing is negotiable
3. Warranty: 2 years at least
4. Delivery: within 30days after received the deposit.
5. OEM, ODM is acceptable
6. We can help you with any of your idea to design and put it into production.
7. Provide help for building factories, such as: spare parts, technical questions, financial matter, management problem, approach of sales...
