Outdoor Electric Industrial And Multiphase Power Plugs And Sockets 125A
Description:
In Europe, the most common range of heavy industrial plugs are made to IEC 60309 (formerly IEC 309) and various standards based on it (including BS 4343 and BS EN 60309-2). These are often referred to in the UK as CEE industrial, CEE form or simply CEE plugs.
Specifications:
| Product | Industrial Plug |
| Rated current | 125A |
| No. of poles | 2P+E, 3P+E 3P+N+E |
| Voltage | 220V-250V; 380V-4150V |
| Protection degree | IP67 |
| Power type | Single Phase, Three Phase |
| Conductor cross-sectional area (mm2) | 6-25(125A) |
| Material | NYLON PA6, PC, copper |
| Color | RAL5017 (Blue); RAL3000 (Red); RAL7000 (Cyan); RAL9018 (White). |
Classification:
Industrial Plugs are available in P+N+E (unbalanced single phase with neutral), 2P+E (balanced single phase), 3P+E (3 phase without neutral), and 3P+N+E (three phase with neutral).
Current ratings available are 16A, 32A, 63A, 125A, 250A, 420A
Voltage and other characteristics are represented by a color code (in three-phase plugs the stated voltage is the phase-phase voltage, not the phase-neutral voltage). The different voltages have the earth pin of a larger diameter than the others, and located in different places depending on the voltage rating, making it impossible to mate.

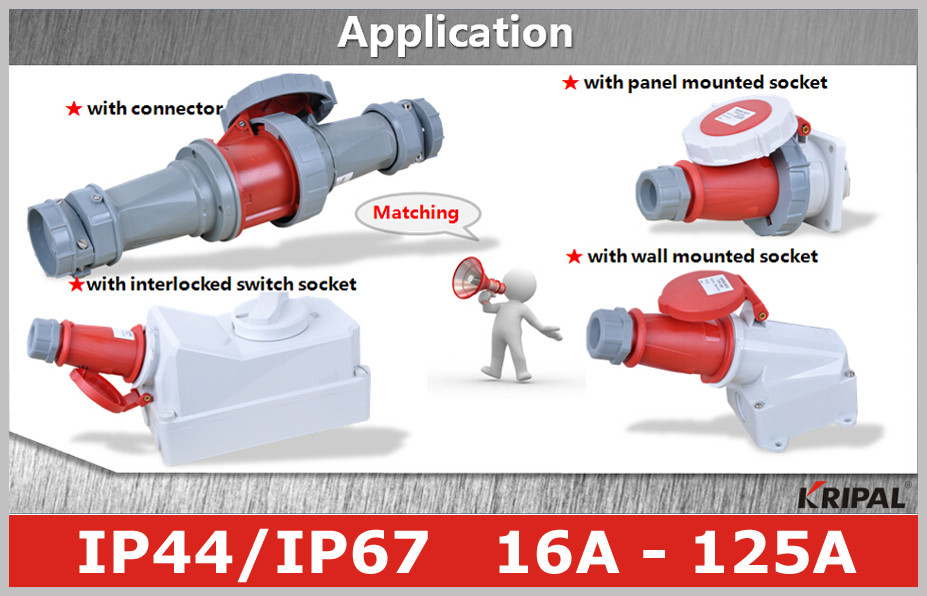

Applications:
Industrial plug and socket, connector is a new generation connector appratus for power connecting, has the features such as security & reliability.They are used widly in the place such as steel smelt, petrochemical processing, electric power, electronic, railway, building ground, airport, mine.
We can provide full range of industrial plug socket:
| Protection | IP44/IP67 |
| Current | 16A, 32A, 63A, 125A, 250A, 420A |
| Pins | 2P+E, 3P+E, 3P+N+E |
| Voltage | 20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V |
| PLUG & SOCKET | Low voltage plug socket <50V |
| Industrial plug, industrial socket |
| Wall mounted socket, wall mounted plug |
| Panel mounted socket, panel mounted plug |
| Interlocked switched socket |
| BOX | Industrial portable socket box |
| Industrial plastic socket box |
| Power maintenance box (stainless) |
| Power maintenance box (plastic) |
| Industrial lighting box (plastic) |
| Industrial lighting box (metal) |
| Distribution box for exhibition box |
| T. V / Film power distribution box |
| Distribution box with power and compress air outlet |
| Accessories | Cap for 16A, 32A, 63A, 125A plug |
Declaration:
KRIPAL is a factory with more than 20 years manufacturing experience and the mold tooling are built in our own mold tooling center. Furthermore our items are different from others to a certain degree. Hereby, we claim that KRIPAL is the only one who makes this item and the same products you got from other companies are also supplied by KRIPAL.
Why not get goods from us directly?
